150W PA 1296MHz
150W_23cm_PA
Under construction.....

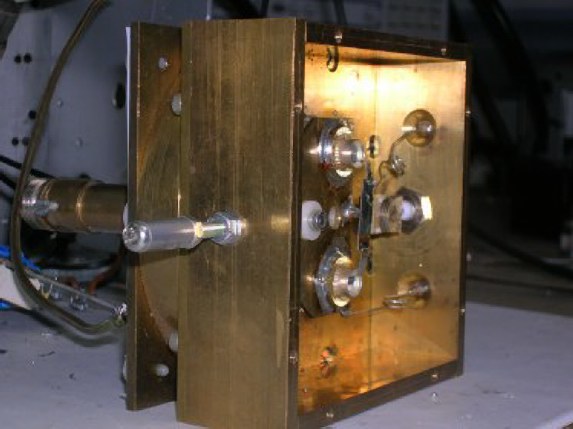

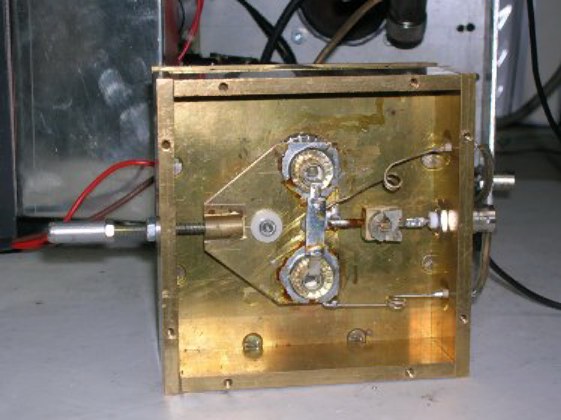

2 x 2C39B Cavity topview...

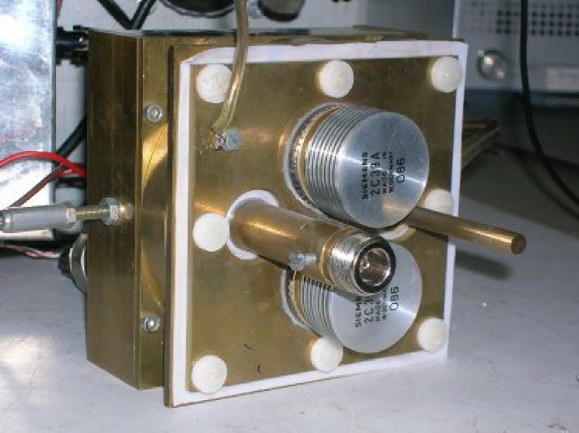

2 x 2C39B Cavity bottom view



2 x 2C39B Cavity input tuning...

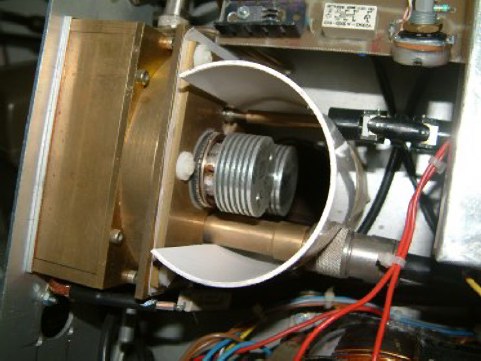

Air flow through chimney...

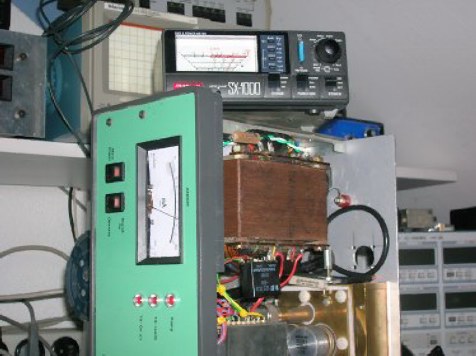

150W on the Daimond SX1000 Power meter...
350mA current, Ua=1100V DC

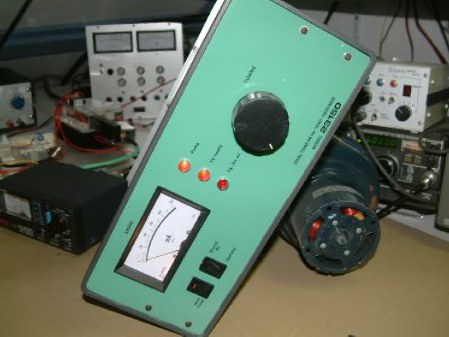

Coolant air from bottom into cabinet...
(needs a cutout in radio-table, but gives good air
flow and small appearance once installed)

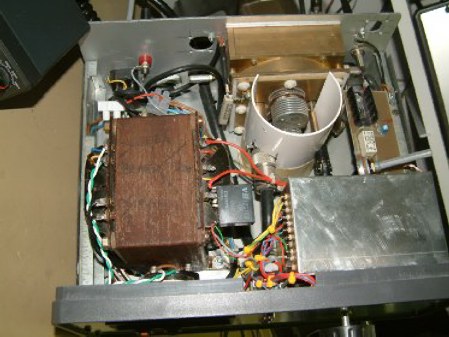

Cabinet interior, Powersupply, timers, Bias...
